SOCKET,PLUG-IN ELECTRONIC COMPON | 23-13153-048 | 5935-01-575-8892 | 015758892

Definition

AN ITEM DESIGNED TO ELECTRICALLY CONNECT AND MECHANICALLY POSITION THE BASE OF AN ITEM HAVING PLUG-IN-TYPE CONTACTS, AND TO FACILITATE REPLACEMENT OF THE ITEM ACCOMMODATED. IT INCLUDES SOCKETS WHICH ACCOMMODATE THE CONTACTS OF CAPACITORS, COILS, CRYSTALS, ELECTRON TUBES, RELAYS, SEMICONDUCTOR DEVICES AND VIBRATORS. EXCLUDES SOCKETS OR RECEPTACLES DESIGNED TO ACCOMMODATE PLUG-IN COMPONENT CIRCUIT BOARDS (PRINTED CIRCUIT BOARDS) AND ELECTRONIC MODULES OR SUB-ASSEMBLIES. ALSO EXCLUDES HEAT-DISSIPATING (NOT HEAT-SINKS) SOCKETS FOR MOUNTING "POWER TRANSISTORS".

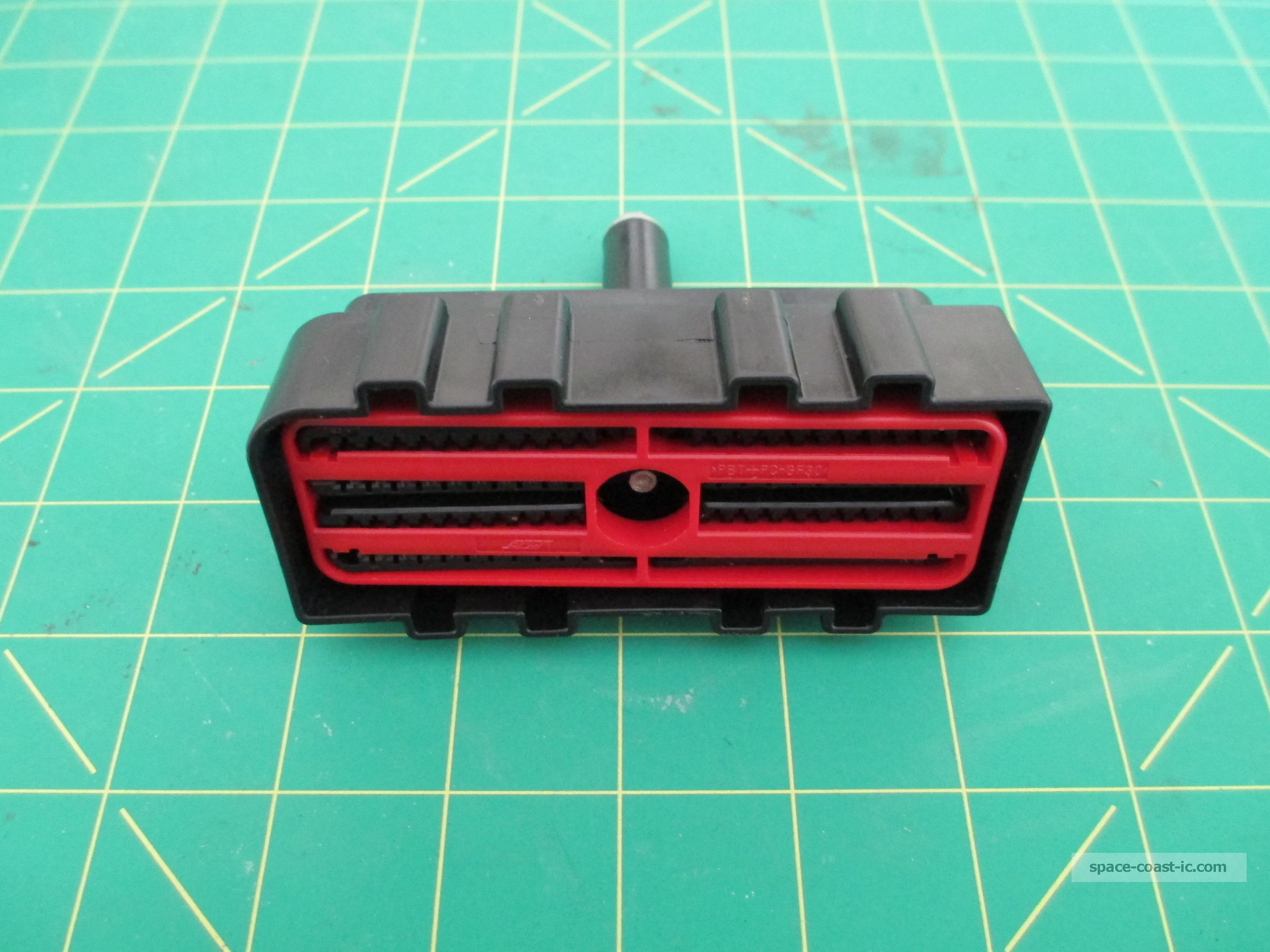

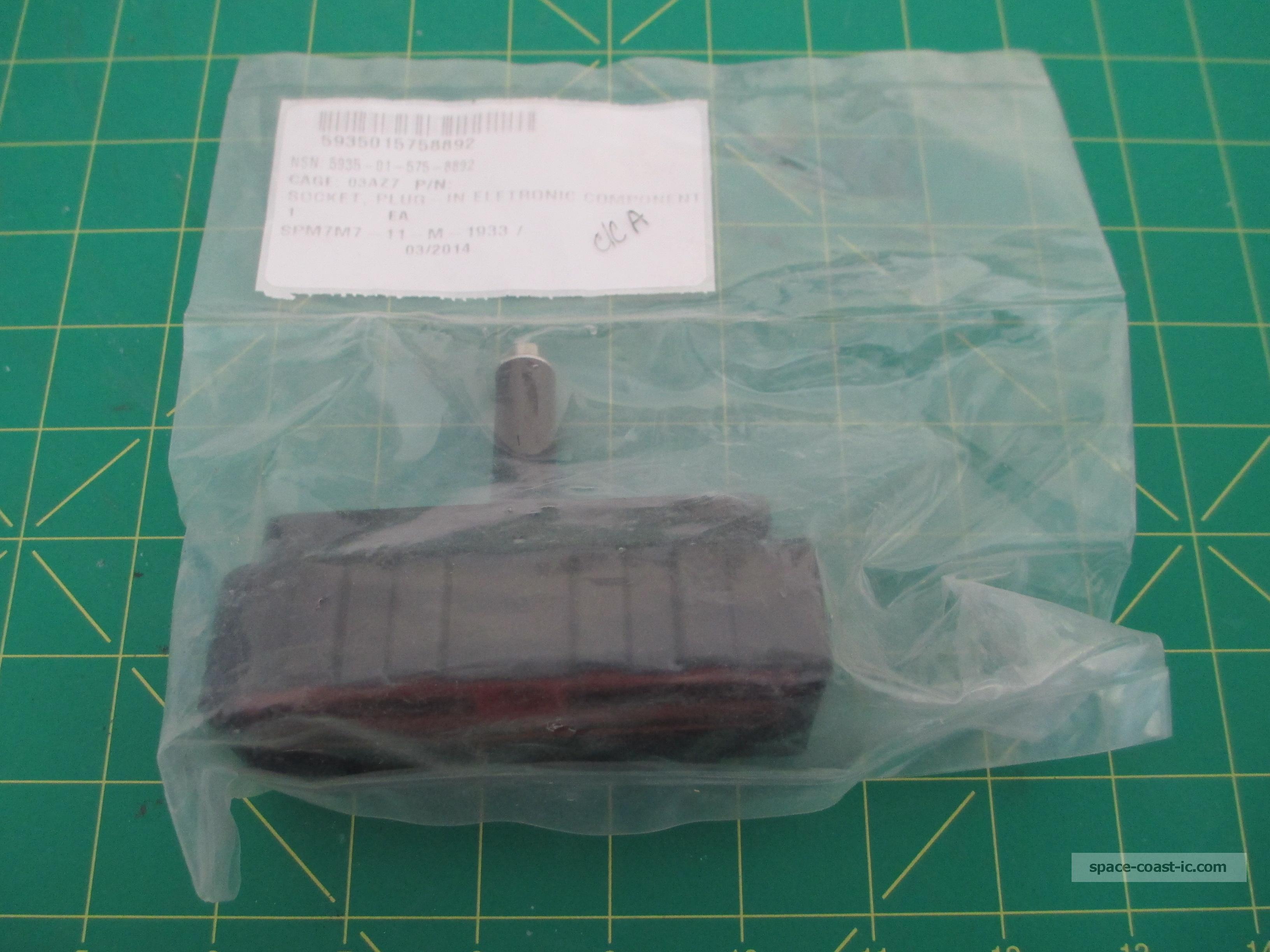

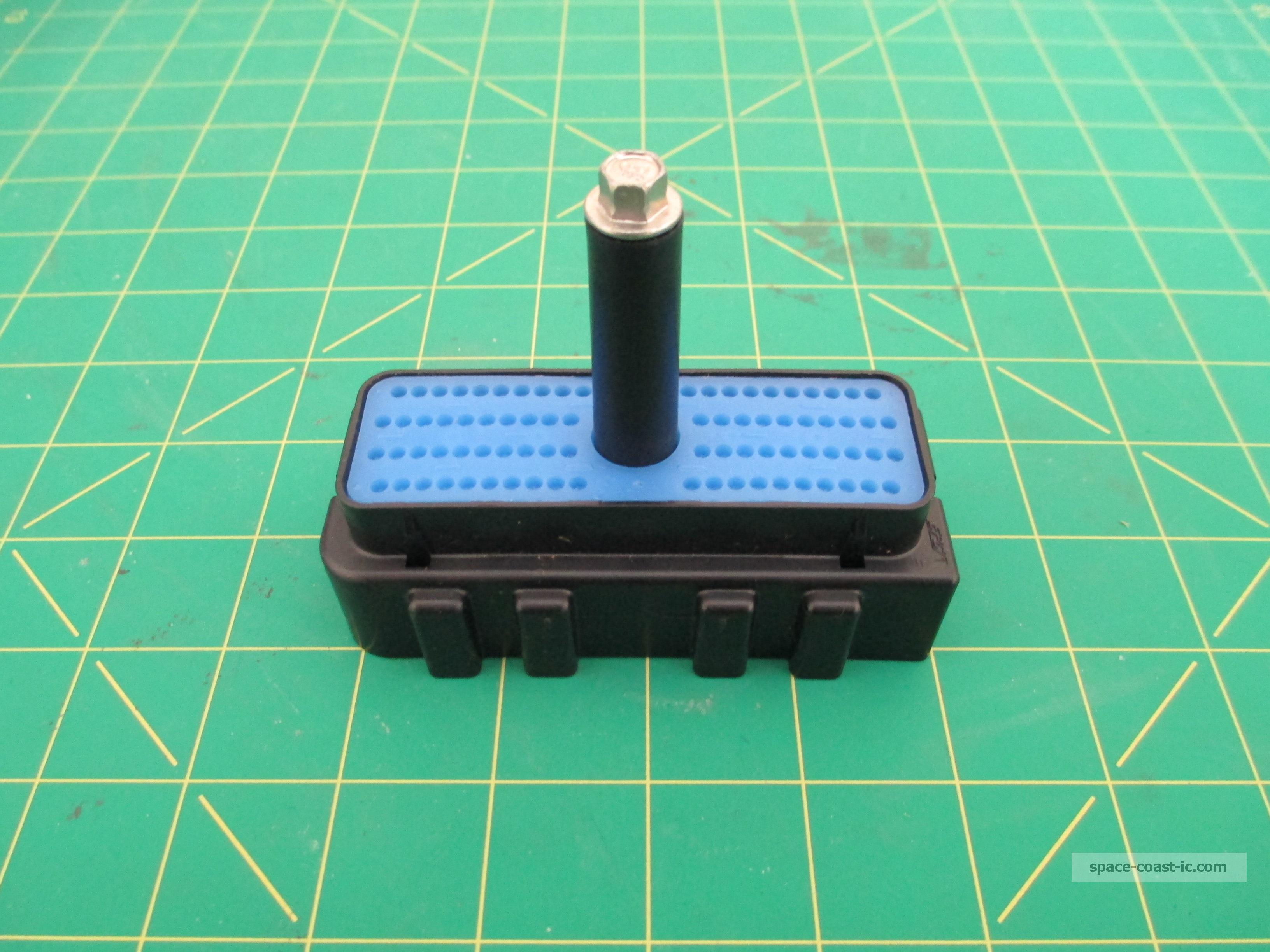

Image(s)

Click images to enlarge.

Reference/Part Number

Part Number	CAGE	Status	RNCC	RNVC	DAC	RNAAC	MSDS	SADC
23-13153-048	64678	A	3	2	1	ZZ

CAGE Information

Code	Company
64678	DAIMLER TRUCKS NORTH AMERICA LLC

Federal Supply Class

Title

CONNECTORS, ELECTRICAL

Inclusions:

INCLUDES PLUGS; JACKS; RECEPTACLES, ELECTRONIC COMPONENT SOCKETS AND ASSOCIATED ACCESSORIES

Exclusions

EXCLUDES INTERCONNECTORS, FIBER OPTIC

Characteristics (Decoded)

MRC	Requirement Statement	Clear Text Reply
CXCY	PART NAME ASSIGNED BY CONTROLLING AGENCY	PLUG-80CAV,MX150S,AFL,BK
FEAT	SPECIAL FEATURES	MATERIAL:PPE PA GF10;POLYPHENYLENE ETHER (OXIDE) POLYAMIDE 10PERCENT GLASS FILLED; COLOR:BLACK; CONNECTOR TYPE:ECU/DEVICE
AGAV	END ITEM IDENTIFICATION	2320-01-552-2292 TRUCK,TRACTOR,LINE HAUL,M915A5
