TAPE,INSULATION,ELECTRICAL | A-A-59474 | 5970-01-523-5531 | 015235531
Definition
A NARROW STRIP OF WOVEN OR PROCESSED MATERIAL LESS THAN TWELVE INCHES (304.8 MM) IN WIDTH. IT IS SPECIFICALLY DESIGNED TO PREVENT ANY UNDESIRABLE FLOW OF CURRENT BETWEEN CONDUCTORS AND OTHER OBJECTS. THE ITEM TENDS TO RESIST ANY PHYSICAL CHANGE, IN CONTRAST TO AN INSULATING COMPOUND IN TAPE FORM WHICH WILL FUSE UNDER A SPECIFIED HEAT OR PRESSURE. IT MAY OR MAY NOT HAVE ADHESIVE BACKING. EXCLUDES ITEMS NOT HAVING DEFINITE RATED ELECTRICAL CHARACTERISTICS, SUCH AS TAPE, ADHESIVE, RUBBER; TAPE, PRESSURE SENSITIVE ADHESIVE; TAPE, SEMI-CONDUCTING, ELECTRICAL; AND TAPE, SHIELDING, ELECTRICAL. SEE ALSO INSULATION CLOTH, ELECTRICAL AND INSULATING COMPOUND, ELECTRICAL.

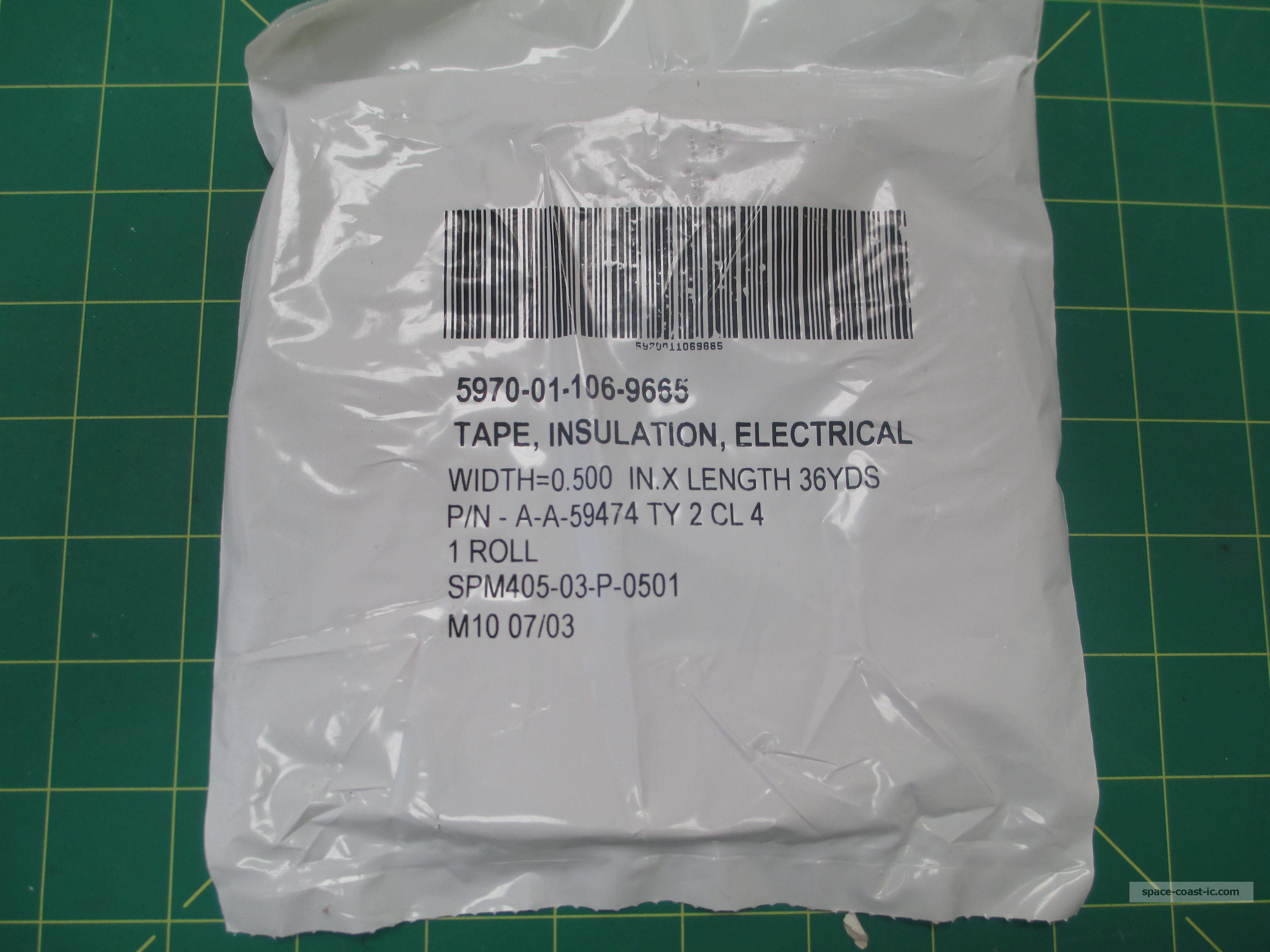

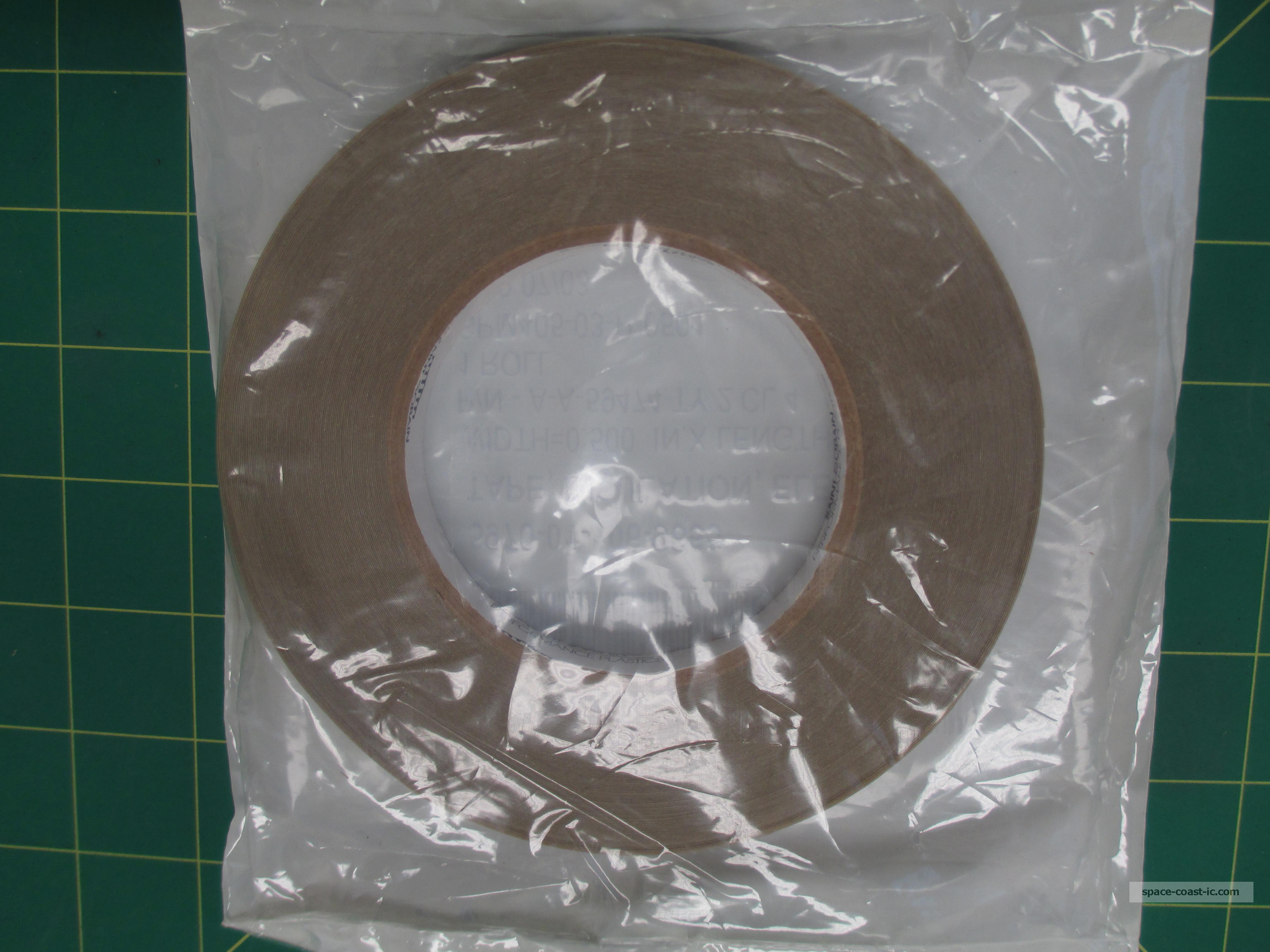

Image(s)
Click images to enlarge.
Reference/Part Number
| Part Number | CAGE | Status | RNCC | RNVC | DAC | RNAAC | MSDS | SADC |
|---|---|---|---|---|---|---|---|---|
| 754-12125 | 82918 | A | D | 9 | C | ZZ | ||
| A-A-59474 | 58536 | M | 4 | 1 | E | ZZ | ||
| 754-12125-4 | 82918 | A | 5 | 2 | C | ZZ |
CAGE Information
| Code | Company |
|---|---|
| 82918 | THE BOEING COMPANY GLOBAL SERVICES & |
| 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION |
| 82918 | THE BOEING COMPANY GLOBAL SERVICES & |
Federal Supply Class
Title
ELECTRICAL INSULATORS AND INSULA
Inclusions:
INCLUDES TUBE, KNOB, CLEAT, STRAIN, AND STANDOFF INSULATORS; FEED THRU INSULATORS; BEAD INSULATORS; VARNISH CAMBRIC TAPE; FRICTION TAPE.
Exclusions
Characteristics (Decoded)
| MRC | Requirement Statement | Clear Text Reply |
|---|---|---|
| CQNS | CUT TYPE AND QUANTITY | 1 SINGLE |
| ZZZT | NONDEFINITIVE SPEC/STD DATA | 4 CLASS AND 1 TYPE |
| MDCL | MATERIAL DOCUMENT AND CLASSIFICATION | MIL-I-23594,TYPE 1,CLASS 4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| ZZZX | DEPARTURE FROM CITED DESIGNATOR | AS MOD BY NOM W AND COLOR |
| ALGP | ADHESIVE TYPE | PRESSURE SENSITIVE |
| ACGY | DIELECTRIC MATERIAL VOLTAGE RATING PER MIL THICKNESS IN VOLTS | NOT RATED |
| AAPB | DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 12700.0 |
| AKGG | NOMINAL LENGTH | 108.0 FEET |
| CSJX | ADHESIVE LOCATION | ONE SIDE |
| AZKQ | TEMP RATING | 260.0 DEG CELSIUS MAXIMUM |
| MATT | MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| CRZG | NOMINAL OVERALL THICKNESS | 0.0046 INCHES |
| CXBT | DIELECTRIC MATERIAL VOLTAGE RATING PER MILLIMETER THICKNESS IN KILOVOLTS | NOT RATED |
| AKGF | NOMINAL WIDTH | 0.500 INCHES |
| AGAV | END ITEM IDENTIFICATION | B-52 AMI MOD. |
| ADZC | ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| HUES | COLOR | UNPIGMENTED OVERALL |
