CAP,TUBE | MS21914-6J | 4730-00-990-6078 | 009906078
Definition
A TUBE FITTING PRIMARILY DESIGNED FOR PERMANENT INSTALLATION DURING TUBING SYSTEM OPERATION TO FIT OVER OR BUTT AGAINST A TUBE OR FITTING FOR SEALING. SEE ALSO CAP, PROTECTIVE, DUST AND MOISTURE SEAL AND CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

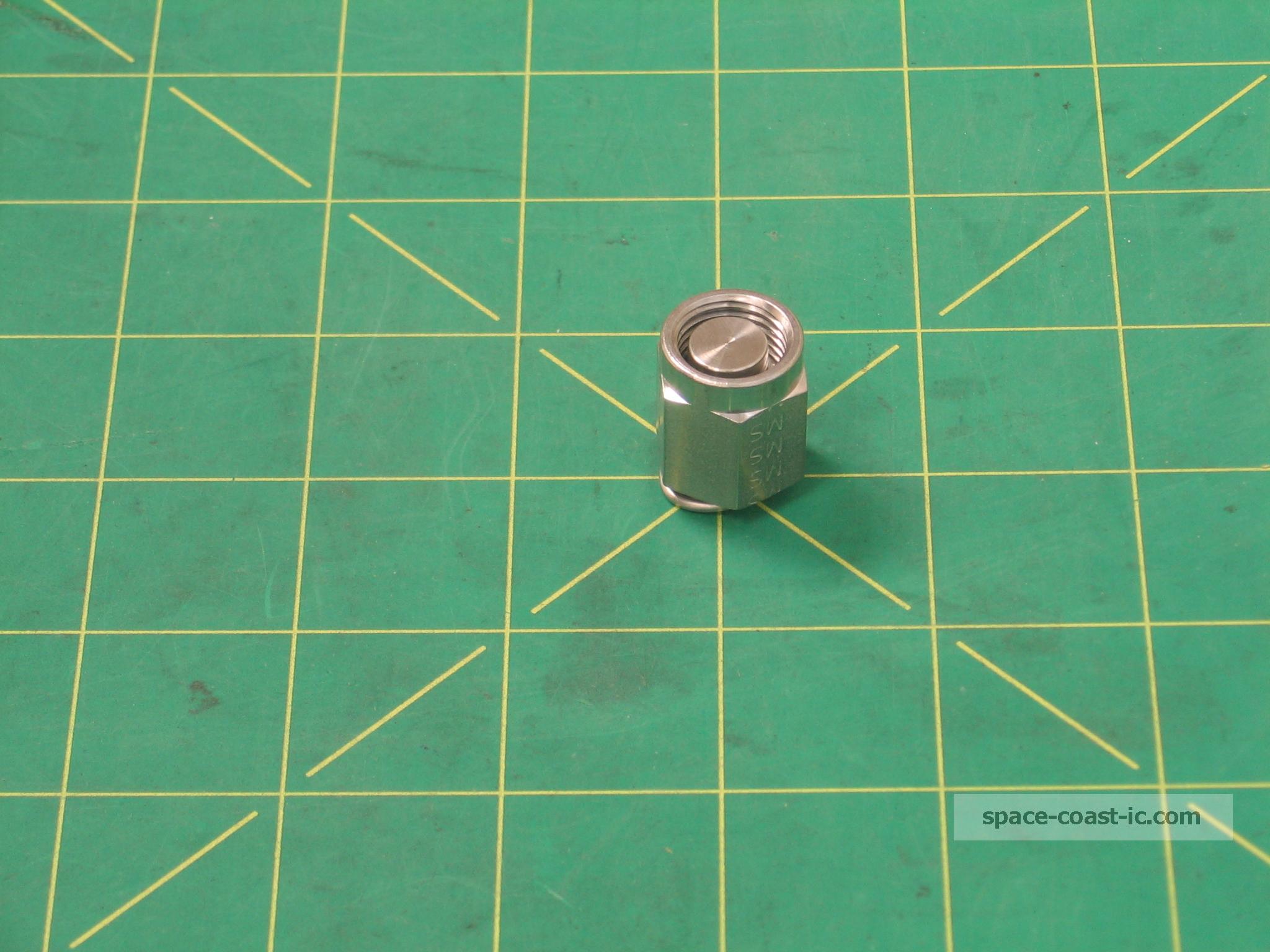

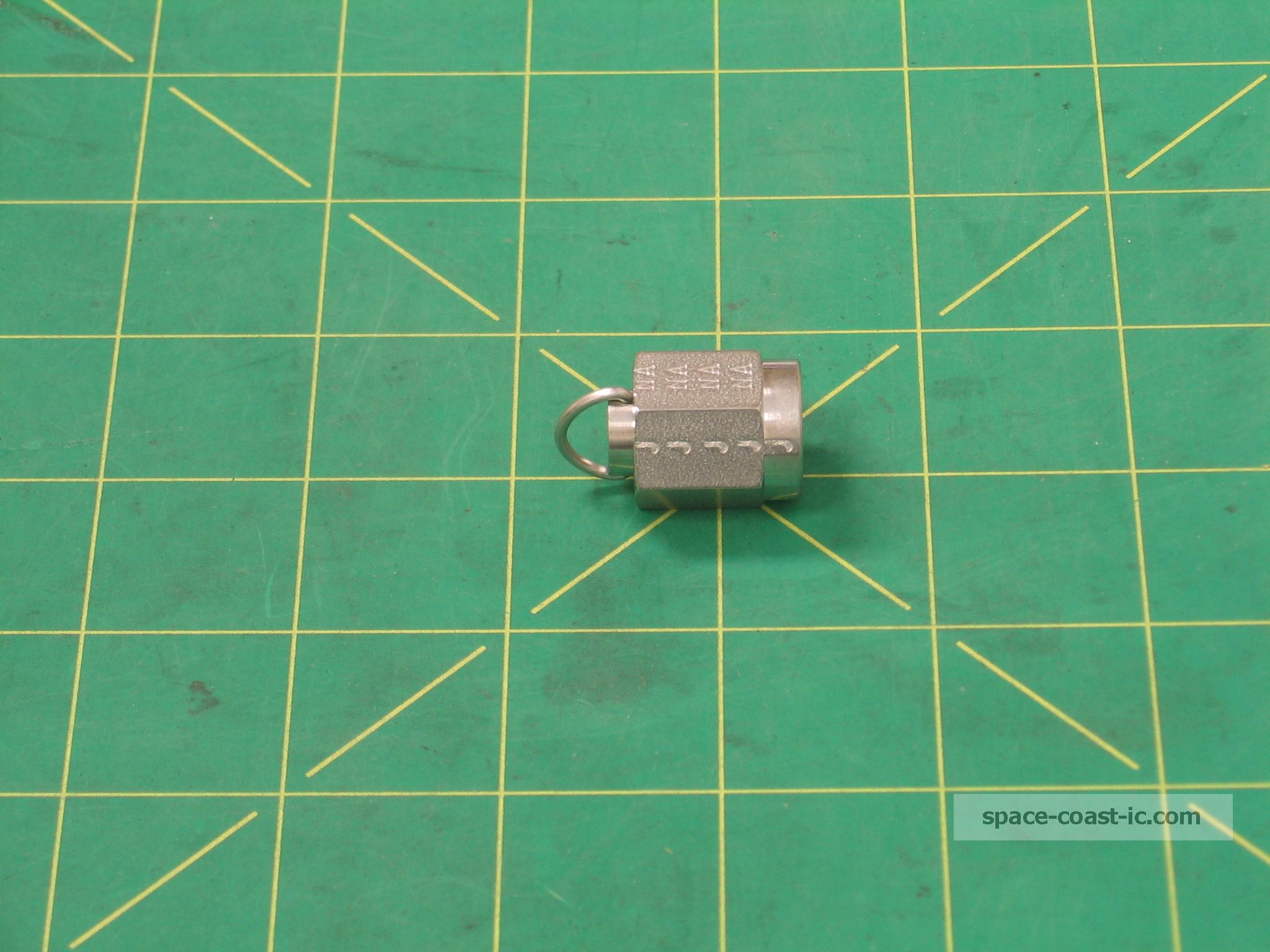

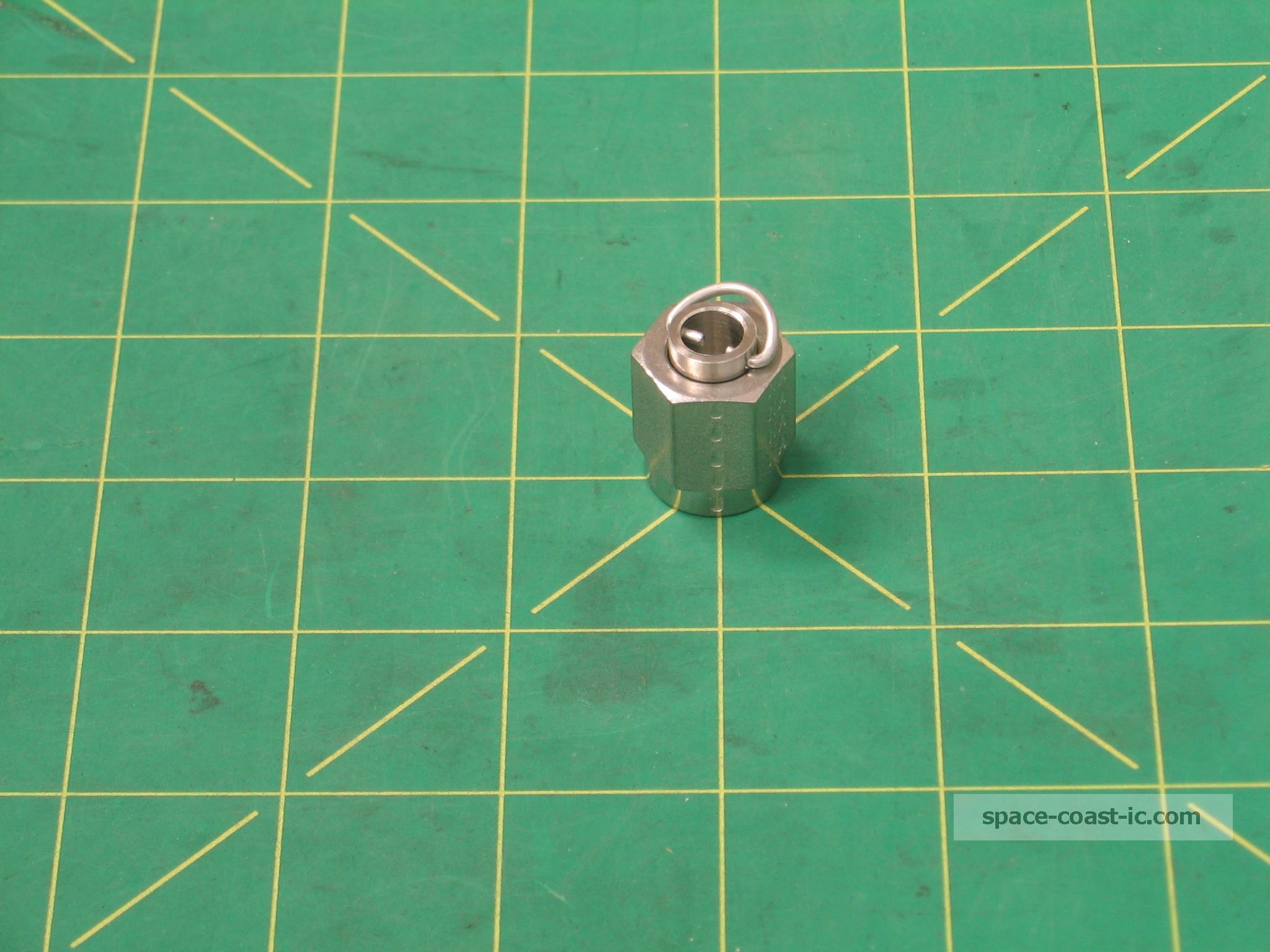

Image(s)
Click images to enlarge.
Reference/Part Number
| Part Number | CAGE | Status | RNCC | RNVC | DAC | RNAAC | MSDS | SADC |
|---|---|---|---|---|---|---|---|---|
| AS21914 | 81343 | A | 3 | 1 | E | ZZ | ||
| MS21914-6C | 96906 | M | 5 | 9 | 3 | BD | ||
| MS21914-6J | 81343 | A | 3 | 2 | E | ZZ | ||
| AS18280 | 81343 | A | 3 | 1 | E | ZZ | ||
| MS21914-6J | 96906 | M | 5 | 9 | 3 | AX |
CAGE Information
| Code | Company |
|---|---|
| 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 96906 | MILITARY STANDARDS PROMULGATED BY MI |
| 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 96906 | MILITARY STANDARDS PROMULGATED BY MI |
Federal Supply Class
Title
HOSE, PIPE, TUBE, LUBRICATION, A
Inclusions:
INCLUDES ADAPTERS; BENDS; CAPS; CLAMPS; CONNECTORS; COUPLINGS; CROSSES; ELBOWS; EXPANSION JOINTS; FERRULES; FLANGES; LATERALS; LUBRICATION FITTINGS; MANIFOLDS; NIPPLES; NOZZLES; OUTLETS; PLUGS; REDUCERS; SWING AND SWIVEL JOINTS; TEES; TRAPS; UNIONS; WYES.
Exclusions
EXCLUDES AIR CONDITIONING-HEATING FITTINGS (FSC 4520); BITUMINIZED FIBER AND CONCRETE FITTINGS (FSC 5630); CONDUIT BOXES AND FITTINGS (FSC 5975); DOWNSPOUT FITTINGS (FSC 5670); MEDICAL AND SURGICAL FITTINGS (FSC 6515); LABORATORY FITTINGS (FSC 6640); POST CAPS AND RAIL ENDS (FSC 5660); MACHINE THREAD BUSHINGS AND PLUGS (FSC 5365).
Characteristics (Decoded)
| MRC | Requirement Statement | Clear Text Reply |
|---|---|---|
| AAJF | THREAD DIRECTION | RIGHT-HAND INTERNAL |
| MATT | MATERIAL | STEEL CORROSION RESISTING OVERALL |
| THSD | THREAD SERIES DESIGNATOR | UNF INTERNAL |
| ACSV | TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| CWBZ | SEAT NOMINAL RADIUS | 0.0225 INCHES |
| STYL | STYLE DESIGNATOR | CAP, TUBE, FLARELESS |
| AAJD | THREAD CLASS | 3B INTERNAL |
| CQJX | NOMINAL THREAD SIZE | 0.562 INCHES INTERNAL |
| ZZZK | SPECIFICATION/STANDARD DATA | 96906-MS21914 GOVERNMENT STANDARD |
| AHNC | CONNECTION STYLE | PRESSURE SEAL FLARELESS |
| SFTT | SURFACE TREATMENT | PASSIVATE OVERALL |
